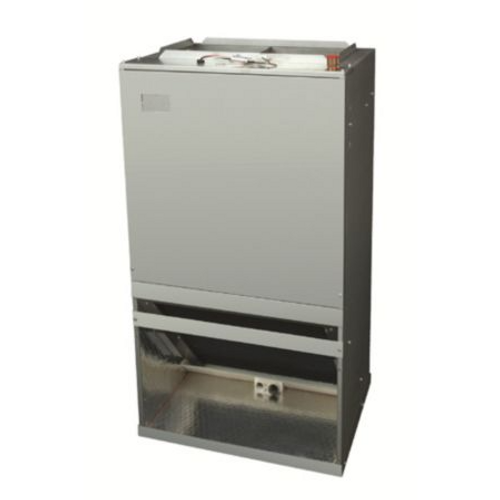

GrandAire - FMA4X3600AT - 3 Ton, Apartment TXV Fan Coil R-410a
- Brand:
- GrandAire
- Availability:
- In Stock
Contact us at 813-693-2247
Product Details
Description
Apartment Fan Coils:
All Models
All Models
- 1-1/2, 2, 2-1/2, and 3 Tons
- Upflow Application Only
- Accessory Field-Installed Electric Heat Kits Available In 5, 7.5, or 10 Kw
- 208/230-1-60 Supply Voltage
- Front Return Convertible To Bottom Return
- Cabinet Exterior Is Galvanized Sheet Metal
- Fully Insulated For Conditioned Space (Not To Be Installed In Unconditioned Spaces)
- PSC Motor On All FMA4P
- ECM Motor On All FMA4X
- Motor Suspended On Rubber Grommets For Quieter Operation
- Fresh Air Intake Holes (Capped From Factory)
- Units Fits Between Standard Stud Spacings
- All Service Access Is Located In The Front
- Primary and Secondary Drain Connections Exit From The Bottom
- No Return-Air Ductwork Required In Specific Applications
- Wall Hanging Brackets Included with The Unit
- 5 Year Parts Limited Warranty
- See Warranty Certificate For Complete Details and Restrictions, Including Warranty Coverage For Other Applications.
California residents: see Proposition 65 Warning
About California Proposition 65
California's Proposition 65 entitles California consumers to special warnings for products that contain chemicals known to the state of California to cause cancer and birth defects or other reproductive harm if those products expose consumers to such chemicals above certain threshold levels. We care about our customers' safety and hope that the information below is beneficial.
We are providing the following warning for products linked to this page:
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Features and Specification
| Weight | 121.000000 |
|---|---|
| Package Weight | 121.000000 |
| Product Family | FMA4X |
| Refrigerant | R-410a |
| Metering Device | TXV/TEV - Thermostatic Expansion Valve |
| Length | 20.000000 |
| Liquid Line Fitting | Sweat or Braze |
| Phase | Single |
| OPT Code | 1PFMA4X3600AT |
| Tonnage | 3 |
| Sound Level (dBA) | 52.6, 52.6-57.2 |
| Heat Pump Compatible | Yes |
| Motor Type | PSC (Permanent Split Capacitor) |
| BTU Output | 36000 |
| Suction Line Size (OD) | 3/4" |
| Liquid Line Size (OD) | 3/8" |
| Width | 23.000000 |
| Stage | Not Provided |
| Suction Line Fitting | Sweat or Braze |
| UL Listed | No |
| Warranty Offered | Yes |
| UOM | EA |
| UPC | See Optical |
| Voltage | 208-230 VAC |
| Brand | Comfortmaker |
| Circuit Breaker - Max Amps | 15 |
| CFM Heating | 900, 900-1350 |
| CFM Cooling | 1050, 1050-1200 |
| CFM | 900, 900-1350 |
| Blower Wheel | Not Provided |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Motor Speeds | 3 (Three) |
| Blower Motor RPM | 1050 |
| Blower Motor HP | 1/2 HP |
| Air Flow | Upflow |
| Color | Gray |
| Includes Filter Rack | No |
| Height | 41.000000 |
| Fins per Inch | 17 |
| ETL Listed | Yes |
| Filter Size | 20" x 20" x 1" |
| Equipment Type | Straight Cool |
| Drain Connection Size | 3/4" |
| Cooling Capacity | 36000 |
| Cubic Measurement | 10.914400 |
| Energy Star Rated | No |
| Cycle/Hertz | 60 Hz |
| EER | 0 |
| Electric Heat Range [kW] | 5, 5-10 |
