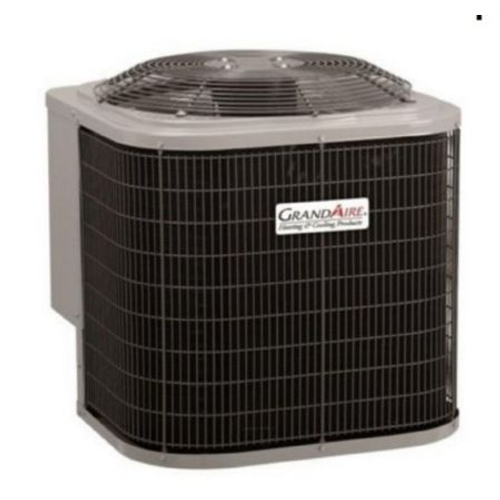

2.5 Ton 14.3 SEER2 Heat Pump Condensing Unit, 208-230/1/60, R-410A

GrandAire-W4H5S30AKAAA 2.5 Ton 14.3 SEER2 Heat Pump Condensing Unit, 208-230/1/60, R-410A2.5 Ton 14.3 SEER2 Heat Pump Condensing Unit, 208-230/1/60, R-410A

(No reviews yet)
Write a Review
MPN:
W4H5S30AKAAA
Brand:
Availability:
2 In Stock
$2,958.00
Adding to cart… The item has been added
Share:

Product Details

Features and Specification

Weight 207
AHRI - Usage Outdoor
Brand GrandAire
CBU - Compressor Bearing Unit Yes
CFM 875-1125
Circuit Breaker - Max Amps 30
Circuit Breaker - Min Amps 30
Compressor Scroll
Condenser Motor HP 1/10 HP
Condenser Motor RPM 825
Condenser Motor Speeds 1 (Single)
Condenser Motor Type Direct Drive
Cycle/Hertz 60 Hz
EER2 11-12.5
Energy Star Rated Yes
Equipment Type Heat Pump
ETL Listed No
Fins per Inch (FPI) 20
Full Load Amps 0.6
Height 29.9
HSPF2 7.5-8.1
Inverter No
Length 32.2
Liquid Line Fitting Type Sweat or Braze
Liquid Line Size (OD) 3/8"
Locked Rotor Amps (LRA) 67.9
OPT Code 1PW4H5S30AKAAA
Phase Single
Product Family W4H5S
Prop 65 Yes
Rated Load Amps (RLA) 14.1
Refrigerant R-410A
SEER2 14.3
Sound Level (dBA) 76
Stage Single
Suction Line Fitting Type Sweat or Braze
Suction Line Size (OD) 3/4"
Tonnage 2.5
UL Listed Yes
UOM EA
UPC See Optical
Voltage 208-230 VAC
Width 32.2
AHRI #
Model Number
 Component System
  Unit Type Width Height Length Weight SEER SEER2 EER EER2 IRA Tax Credit
209690450 WBHL304AB Air Handler 17.625 49.625 22.0625 148 14.5 14.3 12 12 28200 No
209692132 FMA4X3000AL Air Handler 22 39.5 19 97 15 15.2 12.5 12.5 28600 Yes-Both
209692171 FMA4X3600AL Air Handler 22 39.5 19 97 15 15.2 12.5 12.5 28600 Yes-Both
210099836 WBHL364AB Air Handler 17.625 49.625 22.0625 148 15 15.2 12.5 12.5 28200 Yes-South
210838347 WBHL424AC Air Handler 21.125 49.625 22.0625 166   14.5   12   No






1172297 ICP
ICP Parts - 1172297 - 35+5/440 Round Capacitor		 ICP1172297
1172472 ICP
ICP Parts - 1172472 - Contactor 1 Pole 30 Amp 24V 50/60Hz		 ICP1172472
Supersedes (1)
1173668 ICP
ICP Parts - 1173668 - Muffler		 ICP1173668
Supersedes (1)
1174096 ICP
ICP Parts - 1174096 - Capillary Assembly Formed		 ICP1174096
Supersedes (1)
1174192 ICP
ICP Parts - 1174192 - Adapter Assembly		 ICP1174192
1174194 ICP
ICP Parts - 1174194 - Suction Line Drier		 ICP1174194
1175084 ICP
ICP Parts - 1175084 - Harness Assembly		 ICP1175084
1175100 ICP
ICP Parts - 1175100 - Harness Assembly 40" Rvs Plug		 ICP1175100
1176661 ICP
ICP Parts - 1176661 - Switch-Low Pressure		 ICP1176661
Supersedes (1)
1179200 ICP
ICP Parts - 1179200 - Fan Guard		 ICP1179200
Supersedes (1)
1184625 ICP
ICP Parts - 1184625 - Fan Blade 24" 3 Blade		 ICP1184625
Supersedes (2)
1184698 ICP
ICP Parts - 1184698 - Top Cover Medium		 ICP1184698
Supersedes (1)
1185862 ICP
ICP Parts - 1185862 - Suction Valve Service 3/4"		 ICP1185862
Supersedes (1)
1185865 ICP
ICP Parts - 1185865 - Liquid Valve Service		 ICP1185865
Supersedes (1)
1190531 ICP
ICP Parts - 1190531 - Nut Hex #8-32		 ICP1190531
Supersedes (1)
1192249 ICP
ICP Parts - 1192249 - Stem Cap Kit, 3/8"		 ICP1192249
1192250 ICP
ICP Parts - 1192250 - Stem Cap Kit, 5/8"-3/4"		 ICP1192250
1193029 ICP
ICP Parts - 1193029 - Board Control		 ICP1193029
NAEA40501TX ICP
ICP Parts - NAEA40501TX - R-410A Expansion Valve Conversion For R-22 Evaporator Coils Kits 1.5 - 2.5 Ton		 NAEA40501TX
NAEB40501TX ICP
ICP Parts - NAEB40501TX - R-410A Expansion Valve Conversion For R-22 Evaporator Coils Kits 1.5 - 2.5 Ton
ICPNAEB40501TX

NASA00101IK ICP
ICP Parts - NASA00101IK - Accessory Isolation Relay Kit For Hp
ICPNASA00101IK

NASA001AC ICP
ICP Parts - NASA001AC - Cycle Protector
ICPNASA001AC

NASA001LS ICP
ICP Parts - NASA001LS - Liquid Line Solenoid Valve
ICPNASA001LS

NASA001TD ICP
NASA001TD TIME DELAY RELAY
ICPNASA001TD

NASA00201FS ICP
ICP Parts - NASA00201FS - Acc-Evaporator Freeze Stat
ICPNASA00201FS

NASA00201SJ ICP
NASA00201SJ SOUND BLANKET
ICPNASA00201SJ

NASA00601CH ICP
ICP Parts - NASA00601CH - Accessory Crankcase Heater w/Temp Sw
ICPNASA00601CH

NASA012SC ICP
ICP Parts - NASA012SC - ACC-Hard Start Cap & Relay
ICPNASA012SC

NASA401LA ICP
ICP Parts - NASA401LA - Low-Ambient Kit
ICPNASA401LA

NASA405PS ICP
HIGH PRESSURE SWITCH KIT
ICPNASA405PS

ZP25K7E-PFV-830 ICP
ICP Parts - ZP25K7E-PFV-830 - OEM Replacement Compressor		 ICPZP25K7EPFV830
Supersedes (1)
1171056 ICP
BOLT HEX HEAD COMPRESSOR MTG S - Qty 4		 N/A
Supersedes (2)
1171428 ICP
RACEWAY S		 N/A
1171508 ICP
CORE VALVE S		 N/A
1172018 ICP
ACCUMULATOR 120 3/4 NH		 N/A
1172300 ICP
LUG GROUND		 N/A
Supersedes (3)
1172410 ICP
CAP FLARE		 N/A
1172730 ICP
PLUG COMP WIRE (SM) 12GAx38"		 N/A
1172734 ICP
CLAMP 2" OD		 N/A
Supersedes (1)
1172806 ICP
CUSHION ACCUMULATOR		 N/A
1173640 ICP
CLIP ACCUM		 N/A
1174012 ICP
WASHER TEFLON		 N/A
1174060 ICP
PISTON .052		 N/A
1174689 ICP
VALVE SOLENOID		 N/A
1175477 ICP
PISTON TOOL RESIZER KIT		 N/A
1176762 ICP
BARRIER LOW VOLTAGE		 N/A
1178322 ICP
PAINT TOUCH-UP BALTIC GRAY		 N/A
1179268 ICP
CONTROL BOX		 N/A
1179531 ICP
BUSHING SNAP		 N/A
1183923 ICP
DRIER BIFLOW 08 CI 3/8 SWEAT		 N/A
1184996 ICP
VALVE 4-WAY		 N/A
1186082 ICP
SWITCH TEMP ACTIVATED		 N/A
1188293 ICP
GRILLE INLET		 N/A
Supersedes (1)
1191231 ICP
GROMMET COMPRESSOR - Qty 4		 N/A
1191445 ICP
MOTOR, FAN, 1/10 HP		 N/A
Supersedes (1)
1191740 ICP
CAP, SEAL		 N/A
1191742 ICP
VALVE, CHECK		 N/A
1192633 ICP
SUPPORT, COIL - Qty 5		 N/A
1192660 ICP
HARDWARE KIT		 N/A
1193929 ICP
CONTROL BOX COVER KIT		 N/A
1196626 ICP
REPLACEMENT COIL KIT AL/AL		 N/A
NASA00106SS ICP
SNOW STAND KIT		 N/A
NASA00201SF ICP
KIT, SUPPORT FEET		 N/A
